Helm Installation

Install the Kedify Agent using Helm. You can do this either through the Kedify Service or manually by following the guide in this document.

Note

• For guided steps with a graphical user interface, see the Dashboard Installation guide.

• Installing multiple agents via the Dashboard? See the Fleet Installation guide.

Prerequisites

• A running Kubernetes cluster (local or cloud-based like EKS, GKE, etc.).
• helm installed and accessible in your environment.
• An account created and signed in to the Kedify Service.

Installation with Kedify Service

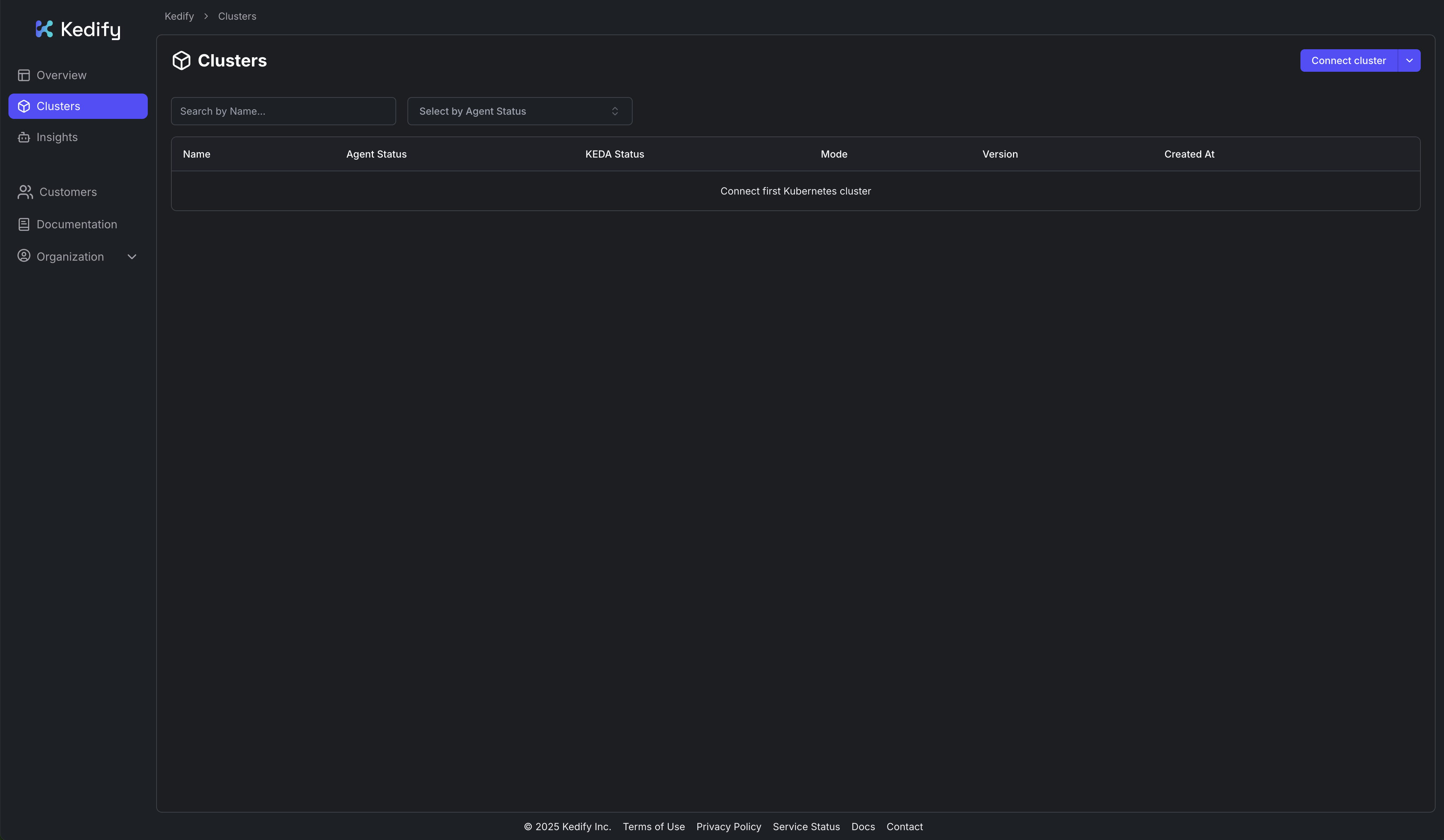

Log in to the Kedify Service and open the cluster view:

In the top-right corner, click the dropdown button to open the installation options, and select Helm Installation:

This opens a dialog showing the necessary steps to install the Kedify using Helm:

Manual Installation

Follow these steps to install the Kedify Agent manually using Helm.

Getting Organization ID

In the Kedify dashboard, navigate to Organization and select Details. Copy the ID.

Getting API Key

If you already have a Kedify Agent deployed, you can retrieve your pre-provisioned API key from a Secret in the same Kubernetes cluster:

kubectl get secret -n keda kedify-agent -o=jsonpath='{.data.apikey}' | base64 --decode

If you don’t have an existing Agent, you can generate a new API Key in the Kedify dashboard. Navigate to Organization and select API Keys. Click Regenerate Agent Key and copy the key.

Warning

The API Key is shared across all your Agent installations. If you regenerate it, you must update existing Agent installations. Do not share this key with unauthorized users.

Helm Installation

The following steps guide you through the minimal installation of Kedify on your cluster using Helm. Each component is installed individually from its respective Helm chart. This means you are responsible for updating each component separately.

Note

All Kedify charts are open source and available on GitHub.

To install the latest versions of the following charts, refer to the values.yaml files in the Kedify Charts repository.

1. Add the Kedify Helm repository:

helm repo add kedifykeda https://kedify.github.io/charts
helm repo update

2. Create a values_keda.yaml file for the KEDA installation with the following content:

image:
  keda:
    tag: v2.16.0-1
    registry: ghcr.io
    repository: kedify/keda-operator
  metricsApiServer:
    tag: v2.16.0-1
    registry: ghcr.io
    repository: kedify/keda-metrics-apiserver
  webhooks:
    tag: v2.16.0-1
    registry: ghcr.io
    repository: kedify/keda-admission-webhooks
watchNamespace: ''
rbac:
  scaledRefKinds:
    - apiGroup: '*'
      kind: '*'
logging:
  operator:
    level: info
    stackTracesEnabled: false
  metricServer:
    level: 0
  webhooks:
    level: info
prometheus:
  operator:
    enabled: true
  metricServer:
    enabled: true
  webhooks:
    enabled: true

See all available options in the values.yaml file.

3. Create a values_addon.yaml file for the HTTP add-on installation with the following content:

images:
  tag: v0.8.1-8
  operator: ghcr.io/kedify/http-add-on-operator
  interceptor: ghcr.io/kedify/http-add-on-interceptor
  scaler: ghcr.io/kedify/http-add-on-scaler
interceptor:
  replicas:
    min: 1
  resources:
    requests:
      cpu: '0.1'
      memory: 32Mi
    limits:
      cpu: 1
      memory: 64Mi
scaler:
  replicas: 1
  resources:
    requests:
      cpu: '0.1'
      memory: 16Mi
    limits:
      cpu: 0.5
      memory: 64Mi
operator:
  replicas: 0
  resources:
    requests:
      cpu: '0.1'
      memory: 16Mi
    limits:
      cpu: 0.5
      memory: 64Mi

See all available options in the values.yaml file.

4. Install KEDA and the HTTP Add-on:

helm upgrade --install keda kedifykeda/keda --namespace keda \
    --create-namespace \
    --values values_keda.yaml

helm upgrade --install keda-add-ons-http kedifykeda/keda-add-ons-http \
    --namespace keda \
    --values values_addon.yaml

5. Install the Kedify Agent:

helm upgrade --install kedify-agent kedifykeda/kedify-agent \
    --namespace keda \
    --set clusterName="cluster-1" \
    --set agent.orgId="$YOUR_ORG_ID" \
    --set agent.apiKey="$YOUR_API_KEY"

Helm Installation with Argo CD

To install the Helm charts using Argo CD, you can use the following manifests. They provide a base configuration for deploying keda, http-add-on, and kedify-agent.

Note

Ensure you update fields such as clusterName, orgId, and apiKey in the kedify-agent manifest according to your organization’s specific requirements. For more details on obtaining your orgId and apiKey, please refer to the Getting Organization ID and Getting API Key sections, respectively.

KEDA Installation Manifest with Argo CD

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: keda
  namespace: argocd
spec:
  destination:
    namespace: keda
    server: https://kubernetes.default.svc
  project: default
  source:
    chart: keda
    repoURL: https://kedify.github.io/charts
    targetRevision: v2.16.0-1
    helm:
      values: |
        image:
          keda:
            tag: v2.16.0-1
            registry: ghcr.io
            repository: kedify/keda-operator
          metricsApiServer:
            tag: v2.16.0-1
            registry: ghcr.io
            repository: kedify/keda-metrics-apiserver
          webhooks:
            tag: v2.16.0-1
            registry: ghcr.io
            repository: kedify/keda-admission-webhooks
  syncPolicy:
    automated: {}
    syncOptions:
      - CreateNamespace=true
      - ServerSideApply=true
  ignoreDifferences:
    - kind: APIService
      group: apiregistration.k8s.io
      jqPathExpressions:
        - '.spec.insecureSkipTLSVerify'
    - kind: ValidatingWebhookConfiguration
      group: admissionregistration.k8s.io
      jqPathExpressions:
        - '.webhooks[].clientConfig.caBundle'

KEDA HTTP Add-On Installation Manifest with Argo CD

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: http-add-on
  namespace: argocd
spec:
  destination:
    namespace: keda
    server: https://kubernetes.default.svc
  project: default
  source:
    chart: keda-add-ons-http
    repoURL: https://kedify.github.io/charts
    targetRevision: v0.8.1-1
    helm:
      values: |
        images:
          tag: v0.8.1-8
          operator: ghcr.io/kedify/http-add-on-operator
          interceptor: ghcr.io/kedify/http-add-on-interceptor
          scaler: ghcr.io/kedify/http-add-on-scaler
        interceptor:
          replicas:
            min: 1
        scaler:
          replicas: 1
        operator:
          replicas: 0
  syncPolicy:
    automated: {}
    syncOptions:
      - CreateNamespace=true
      - ServerSideApply=true

Kedify Agent Installation Manifest with Argo CD

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: kedify-agent
  namespace: argocd
spec:
  destination:
    namespace: keda
    server: https://kubernetes.default.svc
  project: default
  source:
    chart: kedify-agent
    repoURL: https://kedify.github.io/charts
    targetRevision: v0.0.5
    helm:
      values: |
        clusterName: my-cluster            # EDIT THIS
        agent:
          orgId: "FILL THIS FROM UI"       # AVAILABLE UNDER Organization -> Details
          apiKey: "FILL THIS FROM UI"      # AVAILABLE UNDER Organization -> API Keys
  syncPolicy:
    automated: {}
    syncOptions:
      - CreateNamespace=true
